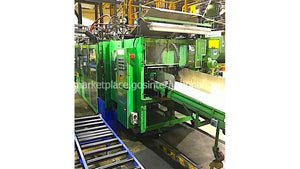

Thermoformers – Illig RDM 70K (SKU 20022)
  • Load image into Gallery viewer, Thermoformers – Illig RDM 70K (SKU 20022)

Thermoformers – Illig RDM 70K (SKU 20022)

Category: Thermoformers
Year: Ref. 2003
Make: Illig
Model: RDM 70K
SKU: 20022

Technical Specifications:
  • Unwind Stand with pneumatic clamping
  • Thermoformer with auto-start facility
  • Idramat servomotor indexing
  • Max. material width 730 mm
  • Max. Indexing length 300 mm
  • Top and Lower heaters, total connected load top and bottom heaters 74.2 kW
  • Drive motor 6.93 kW
  • Auto transport rail spreading for PP
  • Sheet sag control
  • Max. forming area 680 x 280 mm
  • Pneumatic plug assist, max. part height 125 mm
  • Max. mold closing force 25,000 daN
  • Max. cutting length 5000 mm
  • Max. speed under dry cycle conditions 35 cycles/ min

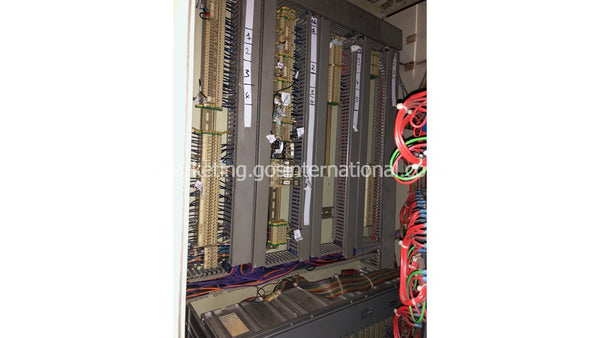

  • Control cabinet with optimised Schleicher (PLC) controls
  • Auto lubrication pump
  • Inline ILLIG ÜG70B counter/ stacker, with delivery conveyor

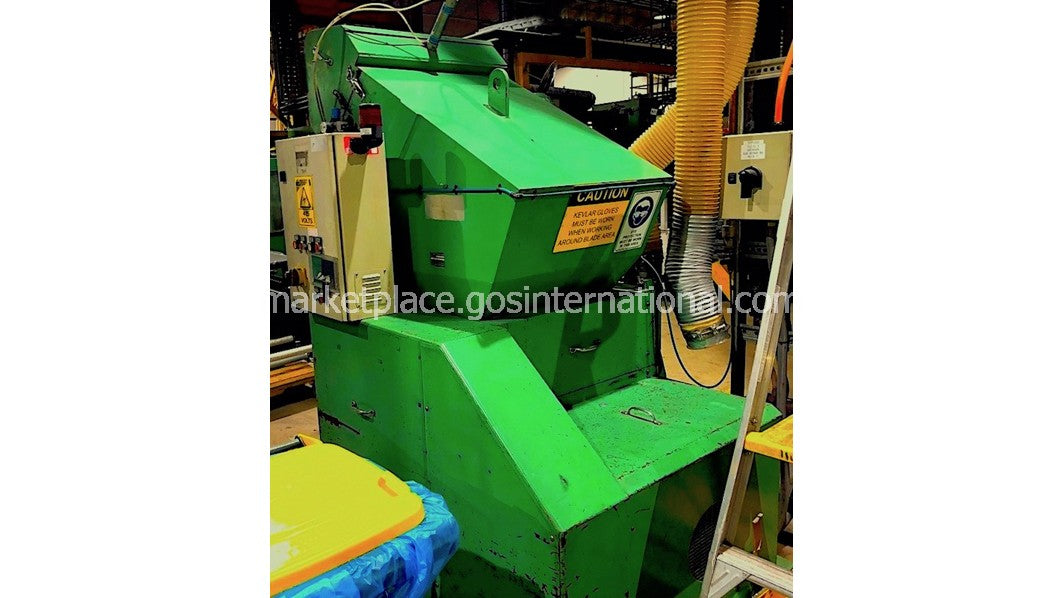

  • Inline grinder

  • Preheater not included
